086195A: Full suspension bush kit SPORT STRONGFLEX

KIT ID: 086195A

Ime: Full suspension bush kit SPORT

Ustreza:

Acura RSX 01-06

Honda Civic 01-06 EP1 EP2 EP3 EP4 EU5 EU6 EU7 EU8 EU9 EV1 EM2 ES4 ES5

Honda CR-V 02-06

Honda Element 03-11

Honda Integra DC5 01-06

Vključuje:

2 x 081572A Front wishbone front bush SPORT

2 x 081573A Front wishbone rear bush SPORT

2 x 081580A Front anti roll bar bush SPORT

Premeri:

23 , 25,4mm

2 x 081574A Rear trailing arm front bush SPORT

2 x 081575A Rear suspension inner lower bush SPORT

2 x 081576A Rear lower arm outer front bush SPORT

2 x 081577A Rear lower arm outer rear bush SPORT

2 or 4 x 081578A Rear suspension bush SPORT*

2 or 0 x 081579A Rear upper arm inner bush SPORT*

2 x 081581A Rear anti roll bar bush SPORT

Premeri:

12,15,17,18,19mm

Kos/izdelki: 20

Potrebno/avto: 1

Sheme:

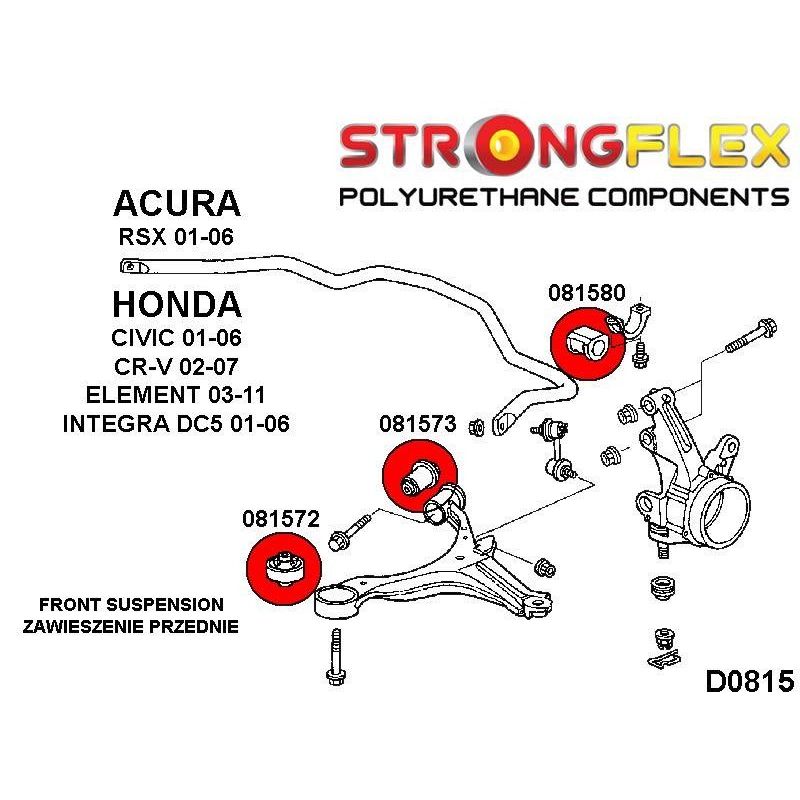

D0815

D0816

• NOTE!
  Before buying bush, select the right combination for your model.
  Fixing screws bushes are available in several sizes.

• Civic
  081575, 081576 - 12mm


• CR-V
  081575, 081576 - 12mm


• Element
  081575, 081576 - 14mm


• Integra
  081575, 081576 - 12mm

NOTE!

*Depending on the model, you need 2 x 081578A and 2 x 081579A or 4 x 081578A for the car.

2 x 081578 i 2 x 081579
ACURA - RSX 01-06
HONDA - CIVIC 01-06, INTEGRA 01-06

4 x 081578
HONDA - CRV 02-07, ELEMENT 03-11

Before adding to the basket, check the quantity needed for your model.
(see the attached diagram D0816)

Measure Anti Roll Bar diameter before placing order.

NOTE!
For mounting bush 081574 you need reuse old metal parts from your original bushes.
Details of the assembly shown in the attached photo.

Trdota: 90ShA

Material: POLYURETHANE (PUR/PU)

Vsakemu izdelku dodamo mast!
